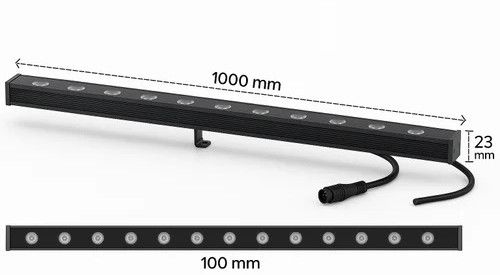

LED Wall Washer Lights

Product Type: In-Ground Linear LED Wall Washer (Single Fixed Colour)

Length: 1000 mm (1 meter)

Power Rating Options: 24W / 36W / 48W

Lighting Type: Non-RGB – Fixed White or Static Colour

Applications: Architectural Wall Grazing/Uplighting, Monuments, Bridges, Walkways, Public Spaces, Hotels, Landscape Borders, Driveway, Courtyard, and Façade Embedding.

Product Description:

• Length: 1000mm (1 meter)

• Power Rating: 48W / 60W / 72W / 96W / 110W

• LED Type: High-intensity LEDs (Osram / Bridgelux / Lumileds)

• Color Temperature: Warm White (2700K–3000K) | Neutral White (4000K) | Cool White (6000K)

• Beam Angles: 10°, 15°, 30°, 45°, 60°, or asymmetric options

• Input Voltage: 24V DC / 48V DC / 100–277V AC

• Material: Heavy-duty aluminum housing with anti-corrosion powder coating

• Front Cover: 5mm clear tempered glass

• Mounting: Adjustable stainless steel bracket for wall, floor, or ceiling installation

• Control Options: Static ON/OFF, 0–10V dimming, DALI, or DMX (optional)

• IP Rating: IP66 – Outdoor weatherproof

• IK Rating: IK08 – Vandal-resistant

• CRI: >80 standard (optional >90)

• Lifespan: >50,000 hours

• Warranty: 3 to 5 years

Applications:

• Large building facades and architectural features

• Temples, towers, and monuments

• Hotels, malls, and commercial plazas

• High-rise structures and infrastructure lighting

Key Highlights:

• High-lumen output for long throw and tall surfaces

• Precise beam angles for targeted light spread

• Industrial-grade construction with sleek design

• Dimming and control-ready for smart lighting systems

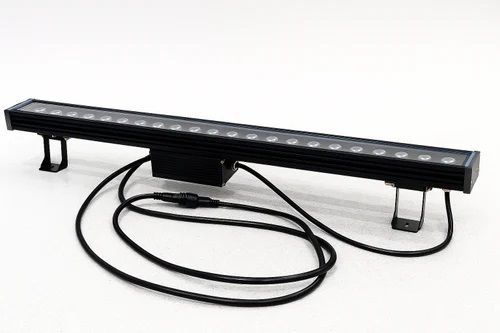

Product Description:

• Product Type: LED Linear Wall Washer

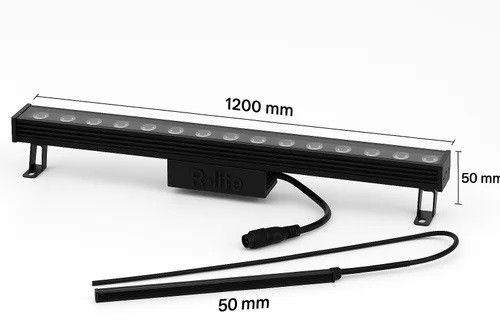

• Length: 1200mm (1.2 meters)

• Power Rating: 40W / 48W / 60W (optional configurations)

• Color Temperature: Warm White (2700K – 3000K)

• LED Source: High-lumen SMD or High-Power LEDs (Osram / Bridgelux / Lumileds)

• Beam Angle Options: 10°, 15°, 30°, 45°, 60°, or asymmetric optics

• Input Voltage:

  • DC: 24V or 48V

  • AC: 100–277V (via external SMPS or built-in driver)

• Material:

  • Aluminum extrusion body with anti-corrosive powder coating

  • 5mm tempered glass cover

  • Stainless steel mounting brackets

• IP Rating: IP66 (Dustproof and waterproof for outdoor use)

• IK Rating: IK08 (Impact resistant)

• CRI: >80 (for accurate architectural color rendering)

• Control Options:

  • ON/OFF (static)

  • Optional dimming: 0-10V, DALI, or PWM

• Mounting: Adjustable mounting brackets for wall, ground, or ceiling installation

• Lifespan: ≥50,000 hours

• Operating Temp: –20°C to +50°C

• Warranty: 3 to 5 years

Applications:

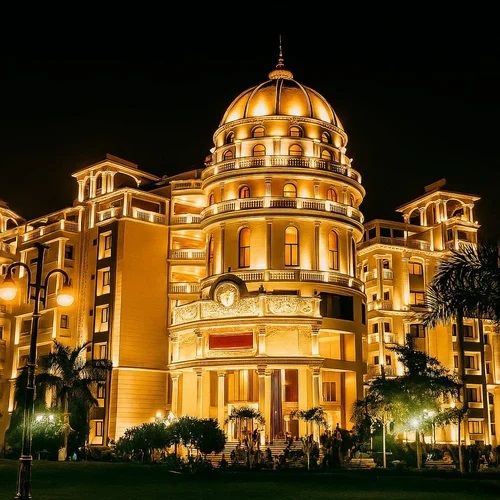

• Facade lighting for commercial buildings, hotels, resorts

• Accent lighting for temples, monuments, pillars, towers

• Landscape wall grazing and boundary illumination

• Urban beautification projects and lighting schemes

APPLICATIONS:

• Architectural Facade Lighting

• Landscape Wall Illumination

• Commercial Complexes & Shopping Malls

• Hotel & Resort Exterior Accents

• Monument and Heritage Structure Highlighting

• Columns, Pillars, and Courtyard Designs

FEATURE HIGHLIGHTS:

• ✔ Seamless Linear Light Output

• ✔ Durable in Harsh Outdoor Conditions

• ✔ Slim & Elegant Aluminum Housing

• ✔ Flicker-Free, Glare-Free Illumination

• ✔ Custom Optics, Colors, and Mounting Options

Feature

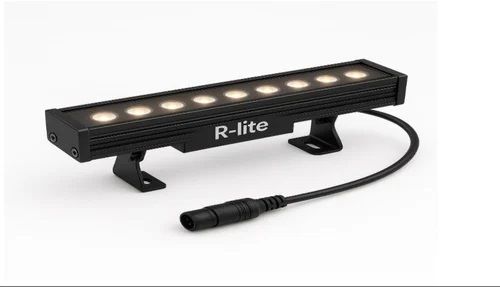

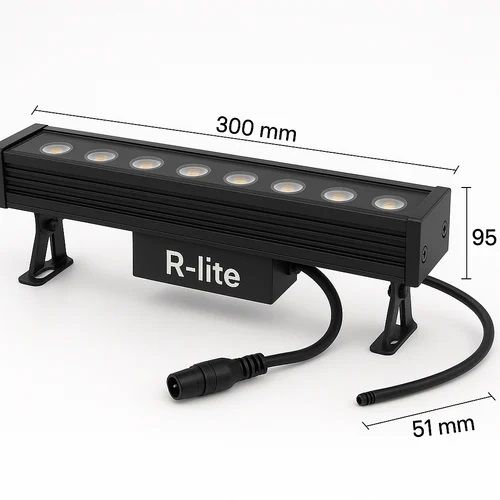

• Product Type: Linear LED Wall Washer (Fixed Single Colour)
• Length: 300 mm
• Power Range: 10W / 12W / 15W / 18W / 20W
• Input Voltage: DC 24V (preferred) or AC 100–240V (optional)
• Applications: Small façade zones, columns, and signage,Landscape lighting, garden walls,Pathways, retail architectural features,Accent lighting for indoor spaces

Feature

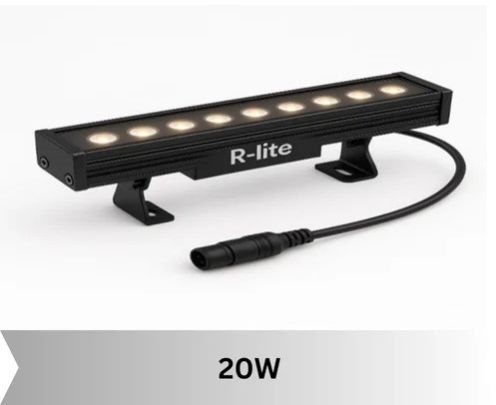

• Product Type: Linear LED Wall Washer (Fixed Single Colour)
• Length: 300 mm
• Power Range: 10W / 12W / 15W / 18W / 20W
• Input Voltage: DC 24V (preferred) or AC 100–240V (optional)
• Applications: Small façade zones, columns, and signage,Landscape lighting, garden walls,Pathways, retail architectural features,Accent lighting for indoor spaces

Feature

• Powerful 24W RGBW LED illumination

• Compact 300mm linear HP design

• Robust aluminium die-cast body

• Superior heat dissipation and durability

• Brilliant, dynamic color-changing effects

• Ideal for architectural facades, walls, and vibrant accent lighting

Electrical & Power

• Operating Voltage: DC 24V / AC 100-277V (as per model)

• Power Consumption: 18W / 24W / 36W / 48W / 60W / 72W / 96W / 120W

• Power Factor: > 0.9

• Driver Type: Constant Voltage / External / Isolated

• Control Protocol: DMX512 (Standard)

• Current Draw: Varies with wattage (e.g., 24W = 1A at 24V)

�� Optical Characteristics

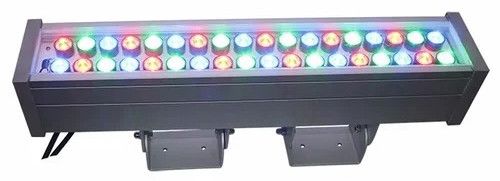

• LED Type: High-power RGB LEDs (SMD / 3-in-1 / 4-in-1 options)

• Color Output: RGB (Red, Green, Blue) / RGBW (on request)

• Beam Angle: 10°, 15°, 30°, 45°, 60°, 10x45° (custom optics available)

• Luminous Flux: Approx. 70-90 lm/W (RGB combined)

• Color Mixing: True DMX512 smooth blending

• Control Channels: 3CH (RGB) or 4CH (RGBW)

��️ Mechanical & Construction

• Body Material: Aluminum Extrusion + Tempered Glass

• Finish: Powder-Coated / Anodized (Black / Grey / Silver)

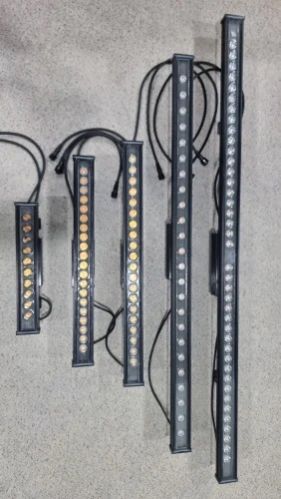

• Length Options: 300mm / 500mm / 600mm / 1000mm / 1200mm

• Mounting Type: Adjustable Bracket / Surface Mount

• Connector: IP65 Waterproof Connectors – DMX IN/OUT, Power IN/OUT

• Ingress Protection: IP65 / IP66 Rated

• Impact Rating: IK07 – IK10 (based on glass type)

• Ambient Temperature: -10°C to +50°C

�� Control & Compatibility

• Control Type: DMX512, RDM compatible

• Addressing Method: Manual DIP Switch / Auto Address / RDM

• Synchronization: Master-Slave / Controller based

• Dimming Capability: 0–100% Smooth Fading

• Optional Control: DMX Decoder + Wireless Controller / Art-Net

⏳ Performance & Life

• LED Life: > 50,000 hours (L70 @ Ta 25°C)

• THD: <10%

• Surge Protection: 2kV / 4kV (as required)

�� Certifications & Compliance

• Standards: CE / RoHS / BIS (if applicable)

• Test Reports: LM-79 / LM-80 (On request)

• Warranty: 2-5 Years (based on configuration)

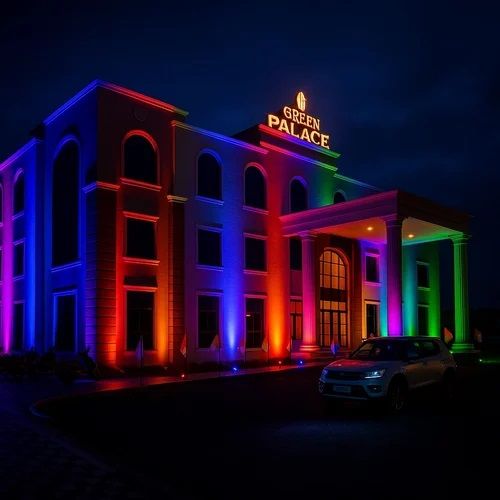

�� Application Areas

• Building Facade Lighting

• Architectural Illumination

• Landscape Walls

• Monuments / Bridges

• Commercial Building Highlights

• Hotel & Mall Elevation Lighting

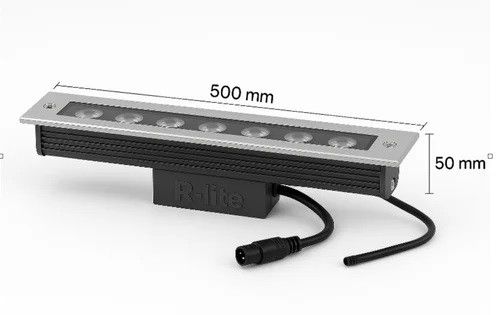

• Product Description:

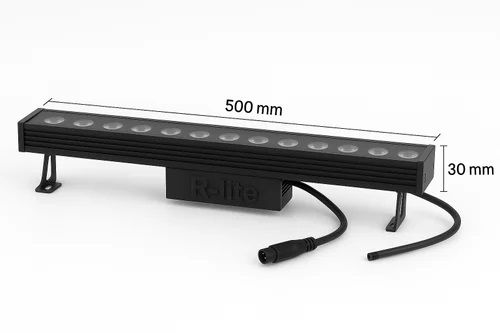

  • Length: 500mm (0.5 meters)

  • Power Rating: 18W / 24W / 30W

  • LED Source: High-efficiency LEDs (Osram / Lumileds / Bridgelux)

  • Color Temperature: Warm White (2700K–3000K) or customizable CCT options

  • Beam Angles: 10°, 15°, 30°, 45°, 60°, asymmetric (on request)

  • Input Voltage: 24V DC / 100–277V AC (with SMPS)

  • Housing: Extruded aluminum body with UV-resistant powder coating

  • Front Cover: Tempered glass (anti-glare optional)

  • Mounting: Stainless steel adjustable bracket – wall or ground

  • Control Options: ON/OFF, 0–10V / DALI dimming (optional)

  • Ingress Protection: IP66 rated – suitable for all weather conditions

  • Impact Resistance: IK08

  • Color Rendering Index (CRI): >80

  • Lifespan: Over 50,000 hours

  • Warranty: 3 to 5 years standard

  Ideal Applications:

  • Façade lighting for villas, homes, and commercial shops

  • Pillar and column lighting

  • Landscape edge illumination

  • Accent lighting for low-rise structures and monuments

  Key Benefits:

  • Compact size ideal for tight spaces and short wall spans

  • Excellent light uniformity and color rendering

  • Weather-resistant design for long-term durability

  • Easy installation with flexible mounting brackets

Feature

• 12W energy-efficient RGBW LED lighting

• 500mm sleek linear design

• Durable aluminium die-cast construction

• Smooth color transitions with RGBW effects

• Effective heat dissipation for longer lifespan

• Ideal for architectural facades, walls, and decorative lighting

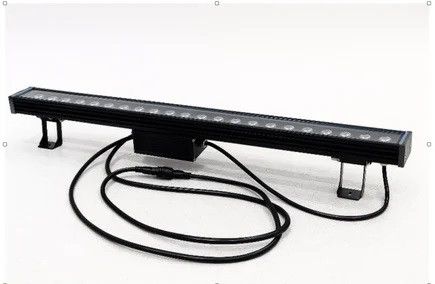

• Description:

  • Model: Linear Wall Washer – 500mm

  • Light Color: Warm White (2700K–3000K)

  • Length: 500mm

  • Power Consumption: 12W – 18W (based on LED configuration)

  • LED Type: High-lumen LEDs (Osram / Bridgelux / Edison optional)

  • Beam Angles: 10°, 15°, 30°, 45°, 60°, or asymmetric options

  • Housing Material:

    • Die-cast aluminum body

    • Corrosion-resistant powder coating

    • Tempered glass front cover

  • Mounting: Adjustable stainless steel bracket for wall or ground mounting

  • Input Voltage: 24V DC or 100–277V AC (optional with built-in driver)

  • Control Options:

    • ON/OFF

    • 0-10V / DALI dimming (optional)

  • Ingress Protection: IP66 – Outdoor use

  • Impact Protection: IK08

  • Color Rendering Index (CRI): >80

  • Lifespan: 50,000 hours

  Applications:

  • Facade wall grazing for commercial and residential buildings

  • Accent lighting on pillars, columns, and boundary walls

  • Architectural lighting in hotels, malls, and monuments

  • Landscape edge lighting

  Key Benefits:

  • Uniform warm white illumination enhances texture and structure

  • Compact size ideal for small to medium-height walls

  • Rugged design ensures long-term outdoor performance

  • Energy efficient with high-lumen output

Product Description:

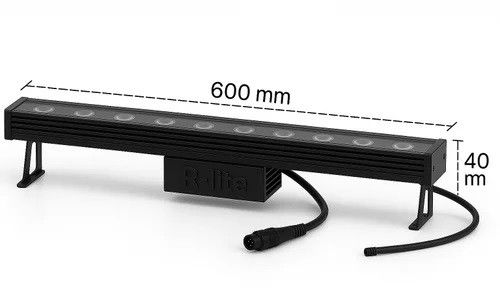

• Length: 600mm (0.6 meters)

• Power Rating: Available from 24W up to 36W (custom high-lumen versions)

• LED Type: High-power LEDs (Osram / Lumileds / Bridgelux)

• Color Temperature: Warm White (2700K–3000K) / Neutral White / Cool White (4000K–6000K)

• Beam Angle Options: 10°, 15°, 30°, 45°, 60°, or asymmetric for tailored light spread

• Input Voltage: 24V DC / 48V DC / 100–277V AC (based on model)

• Body Material: Heavy-duty extruded aluminum with corrosion-resistant powder coating

• Glass Cover: 5mm Tempered safety glass

• Mounting: Adjustable brackets for wall, floor, or ceiling mounting

• Controls: Static ON/OFF, 0-10V, PWM, DALI, or DMX (for RGB/RGBW variants)

• IP Rating: IP66 (Fully outdoor weatherproof)

• IK Rating: IK08 (Impact-resistant)

• CRI: >80 (Optional >90)

• Lifespan: >50,000 hours

• Warranty: 3 to 5 years depending on configuration

Applications:

• Tall building facades and vertical architectural surfaces

• Temples, monuments, and towers

• Hotel exteriors, shopping malls, and commercial plazas

• Infrastructure and government buildings

Key Highlights:

• Ultra-high wattage variants ideal for long-throw or tall structures

• Customizable optics and lumen packages

• Compatible with advanced control protocols (DMX, DALI)

• Elegant and rugged profile for seamless architectural integration

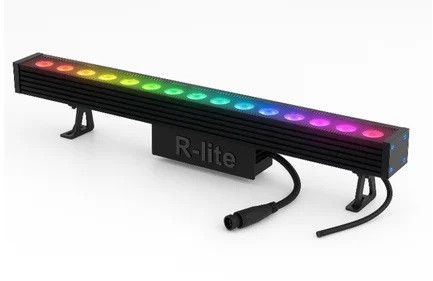

Feature

• High-power 60W RGBW LED output
• Extended 600mm linear HP design
• Durable aluminium die-cast body
• Superior heat dissipation for long lifespan
• Vivid, dynamic color-changing effects
• Perfect for large architectural facades and vibrant outdoor lighting

Electrical & Power

• Power Consumption: 18W / 24W / 36W / 48W / 72W (custom options available)

• Input Voltage: DC 24V / AC 100-277V

• Power Factor: ≥ 0.95

• Driver Type: External Constant Voltage / Constant Current

• Control: ON/OFF / DMX512 / DALI / 0-10V / Bluetooth / RF

🔎 Optical Parameters

• LED Source: High Power LEDs (Bridgelux / Cree / Osram)

• Available CCT:

  • Single Color: 2700K / 3000K / 4000K / 5700K / 6500K

  • RGB / RGBW (Red, Green, Blue, White)

• CRI: ≥80 (90 optional)

• Beam Angles: 10°, 15°, 25°, 30°, 45°, 60°, 10×60°, 15×45°

• Luminous Efficacy: ≥ 90 lm/W (Single Color)

🛠️ Construction & Mechanical

• Body Material: Aluminium Alloy (Die-Cast)

• Finish: Powder Coated – Grey / Black / Custom

• Diffuser: Tempered Glass, Anti-glare Option

• Length Options: 300mm / 600mm / 1000mm / 1200mm

• Mounting: Adjustable Yoke Bracket / Fixed Clamp / Linear Track

🌧️ Durability & Protection

• Ingress Protection: IP65 / IP66 / IP67 (depending on model)

• Impact Resistance: IK08 / IK10

• Operating Temperature: -20°C to +55°C

• Lifespan: 50,000 hours @ L70

📶 Connectivity & Control

• DMX Addressing: Manual via DIP switch / RDM Compatible

• Cable Entry: PG Glands / Waterproof Connectors

• Optional Features:

  • Surge Protection

  • Loop-In Loop-Out Wiring

  • Adjustable Tilt Angle (0°–90°)

✅ Certifications

• CE / RoHS / BIS (India) / UL (on request)

Additional Information:

• Production Capacity: 1000
• Delivery Time: 25 day
• Packaging Details: full box packing

GENERAL WALL WASHER LIGHT KEYWORDS

• wall washer light

• led wall washer

• building wall washer light

• architectural wall washer lighting

• linear wall washer

• narrow beam wall washer

• facade wall washer

• outdoor wall washer light

• exterior wall washer light

• high power wall washer

🔷 SINGLE COLOR WALL WASHER KEYWORDS 🟡 Color & CCT Based

• warm white wall washer

• cool white wall washer

• natural white wall washer

• single color wall washer

• 3000K wall washer light

• 4000K led wall washer

• 5700K wall washer light

• 6000K led wall washer

• fixed white wall washer

• mono color facade light

• constant white wall washer

• warm white facade light

🧰 Technical & Product-Oriented

• 18w single color wall washer

• 36w warm white led wall washer

• 24v dc wall washer

• ip66 white wall washer

• ip67 white wall washer light

• aluminium housing led wall washer

• single tone wall washer

• outdoor warm white wall washer

• narrow beam single color light

• surface mounted single color light

🌈 RGBW WALL WASHER KEYWORDS 🔴 Color & Control Based

• rgbw wall washer

• dmx rgbw wall washer

• rgbw 4-in-1 wall washer

• multicolor wall washer light

• rgbw linear wall washer

• color changing wall washer

• rgbw building wall washer

• tunable white rgbw wall washer

• smart rgbw facade light

• rgbw pixel wall washer

• full color + white wall washer

• dynamic lighting rgbw

• dmx512 rgbw wall washer

⚙️ Technical & Product-Specific

• 18w rgbw wall washer

• 36w rgbw led wall washer

• 72w rgbw dmx wall washer

• programmable rgbw wall washer

• ip66 rgbw wall washer

• ip67 rgbw facade light

• 24v dc rgbw wall washer

• aluminium rgbw wall washer

• beam angle 10 degree rgbw

• narrow beam rgbw wall washer

• pixel-controlled rgbw light

🌍 INDIA-FOCUSED & SEO KEYWORDS

• wall washer light manufacturer in India

• rgbw wall washer supplier India

• warm white wall washer India

• facade wall washer lighting India

• dmx rgbw light for buildings

• temple wall washer lighting India

• outdoor architectural lights India

• led facade lights for monuments

• rgbw wall washer price in India

• building facade light India

Additional Information:

• Production Capacity: 1000
• Delivery Time: 25 DAY
• Packaging Details: BOX PACKING

Highlight Features:

• Uniform linear wash effect with no light bleeding

• Optional narrow-beam version for tall structures (5° to 15°)

• RGBW + DMX512 with addressable pixel bar support

• High thermal efficiency with extruded aluminum body

• Custom CCT and beam angles available on request
