Product Details
Wall Washer Light – Specification Sheet
1. Product Type:
LED Linear Wall Washer / Architectural Wall Washer
2. Power Options:
12W / 18W / 24W / 36W / 48W / 72W
3. Input Voltage:
24V DC / 100–240V AC
4. Beam Angle Options:
5°, 10°, 15°, 25°, 30°, 45°, 60°
5. CCT (Color Temperature):
2700K (Warm White)
3000K
4000K (Neutral White)
6000K (Cool White)
RGB / RGBW / Tunable White
6. Control Options:
ON/OFF
0–10V Dimming
DMX512
DALI
Wireless (Optional)
7. Housing Material:
Aluminum Alloy Body with Tempered Glass Cover
8. IP Rating:
IP65 / IP66 / IP67 (Waterproof & Dustproof)
9. IK Rating:
IK08 / IK10 (Impact Resistant)
10. Mounting:
Surface / Wall Mount with Adjustable Bracket

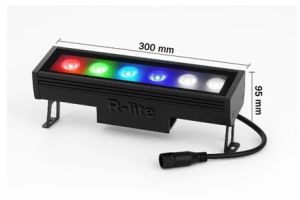

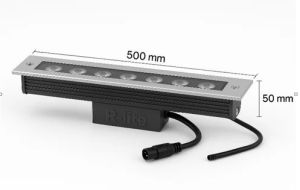

11. Dimensions (Common Sizes):
300mm / 500mm / 600mm / 1000mm / 1200mm
(Custom sizes available)
12. LED Source:
High Power LEDs / SMD LEDs (Osram / Cree / Bridgelux optional)
13. Luminous Flux:
80–110 lm/W (depending on color and driver)
14. Lifespan:
50,000 Hours
15. Operating Temperature:
-20°C to +50°C
16. Certifications:
CE / RoHS / BIS (if applicable)
17. Warranty:
3 to 5 Years (As per manufacturer policy)
